WELDING MACHINES

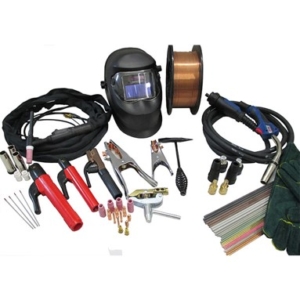

WELDING MACHINES AND ACCESSORIES

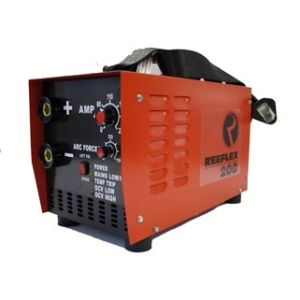

200A/ 220V DC INVERTER
| PRIMARY | |
| IMPUT | 220V |
| VOLTAGE | 1 PHASE |
| -0.15 | |
| INPUT | 33A |
| CURRENT | |
| DUAL VOTAGE OPTION | NO |
| SECONDARY | |
| DC WELDING CURRENT | 200A28V |
| DUTY CYCLE AT MAXIMUM OUTPUT | 100% |
| CURRENT RANGE | 20-200A |
| OPEN CIRCUIT VOLTAGE | 15/60V |
| COSTANT CURRENT | Yes |
| FOR DC TIG | |
| WELDING LIFT ARC | Yes |
| ARC FORCE | Ajustable |
| MAX ELECTRODE DIAMETER | 5 mm |
| COOLING | Fan |
| DIMENSIONS HEIGHT | 220 mm |
| WIDTH | 20Omm |
| LENGTH | 380mm |
| WEIGHT | 10 kg |
| BUILT IN VOLTAGE REDUCER | YES |

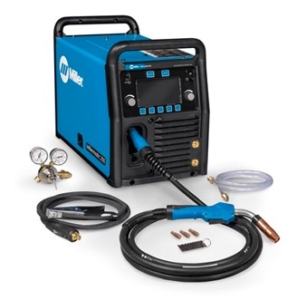

255 MIG/Pulsed MIG Welder – 208/240V
| Machines Processes | Stick (SMAW)
Gouging (CAC-A) Flux-Cored (FCAW) Flux-Cored (FCAW) MIG (GMAW) Flux-Cored Self-Shieled (FCAW-S) Flux-Cored Gas- Shielded (FCAW-G) Submerged Arc (SAW) |
| Wire Feeder Supply Voltage | 115 VAC |
| 42 VAC | |
| Amphenol Pins (type of connector) | 5
14 12 |
| Work Lead Connector Type | Lug |

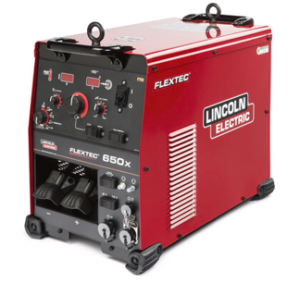

650X Multi-Process Welder with CrossLinc™ Technology
| Input Power | Auto-line 208-240 V Single-Phase |
| Rated Output | 230 A at 25.5 V, 60% duty cycle |
| Amerage Range | 20-350A |
| Net Weight | machine only: 38kg |
| Machine with running gear: 67kg |

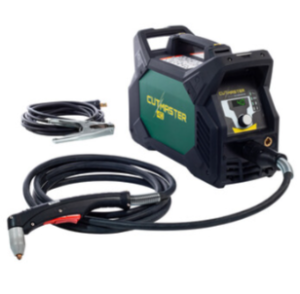

TD Cutmaster 40
| AMP LOW-HIGH | 15A-40A |
| IMPUT RATING | 110-240 VAC 1 PH 60/60Hz |
| DUTY CYCLE | 30A @ 60% DUTY CYCLE |
| 20A @ 100% DUTY CYCLE | |
| 40A @ 40% DUTY CYCLE | |
| IMPUT VOLTAGE | 29A @ 208V |
| 26A @ 230V | |
| 25.3 @115V | |
| PLATE THICKNESS | RECOMMENDED CUT SPEED |
| 1mm (1/32 in.) | 7670mm/min (300in./min) |
| 2mm (1/16 in.) | 6985mm/min (275in./min) |
| 4mm (9/64 in.) | 2667mm/min (105in./min) |
